Microsoft Dynamics ERP - GP Connector
Additional Documentation
This Connector is based on the Dynamics GPADO.NET Provider by CData. For additional help, including String parameters, please see: https://cdn.cdata.com/help/DPG/ado/
Dynamics GP Version Support
The provider supports read access to Dynamics GP 2010, 2013, and 2015 through the Dynamics GP Web services APIs. Web services must be enabled for your instance.
Establishing a Connection
Authenticating to Dynamics GP
To authenticate set User and Password.

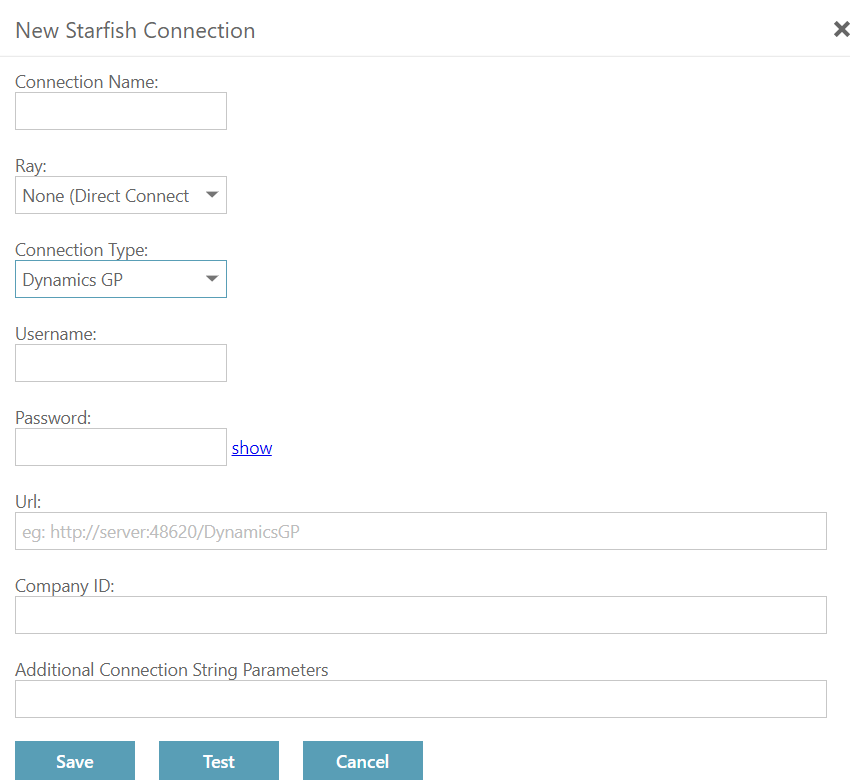

Connecting to Dynamics GP
To connect set the Url to the Web services endpoint; for example, http://{servername}:{port}/Dynamics/GPService. Additionally, set CompanyId; you can obtain this value in the company setup window: Click Tools -> Setup -> Company.
Connection String Options
The connection string properties are the various options that can be used to establish a connection. This section provides a complete list of the options you can configure in the connection string for this provider. Click the links for further details.
For more information on connecting, see Establishing a Connection.| Auth Scheme | The scheme used for authentication. Accepted entries are NTLM, Basic, Digest, None, and Negotiate. |
| Auto Cache | Automatically caches the results of SELECT queries into a cache database specified by either CacheLocation or both of CacheConnection and CacheProvider . |
| Cache Connection | The connection string for the cache database. This property is always used in conjunction with CacheProvider . Setting both properties will override the value set for CacheLocation for caching data. |
| Cache Location | Specifies the path to the cache when caching to a file. |
| Cache Metadata | This property determines whether or not to cache the table metadata to a file store. |
| Cache Provider | The name of the provider to be used to cache data. |
| Cache Tolerance | The tolerance for stale data in the cache specified in seconds when using AutoCache . |
| Company Id | The unique identifier of the company to access as a data source. |
| Connection Life Time | The maximum lifetime of a connection in seconds. Once the time has elapsed, the connection object is disposed. |
| Firewall Password | A password used to authenticate to a proxy-based firewall. |
| Firewall Port | The TCP port for a proxy-based firewall. |
| Firewall Server | The name or IP address of a proxy-based firewall. |
| Firewall Type | The protocol used by a proxy-based firewall. |
| Firewall User | The user name to use to authenticate with a proxy-based firewall. |
| Ignore Lookup Id Errors | A boolean indicating if errors on Ids that are looked up should be ignored. |
| Location | A path to the directory that contains the schema files defining tables, views, and stored procedures. |
| Logfile | A filepath which designates the name and location of the log file. |
| Log Modules | Core modules to be included in the log file. |
| Lookup Ids | A boolean indicating if ids should be looked up. |
| Max Log File Count | A string specifying the maximum file count of log files. When the limit is hit, a new log is created in the same folder with the date and time appended to the end and the oldest log file will be deleted. |
| Max Log File Size | A string specifying the maximum size in bytes for a log file (for example, 10 MB). When the limit is hit, a new log is created in the same folder with the date and time appended to the end. |
| Max Rows | Limits the number of rows returned rows when no aggregation or group by is used in the query. This helps avoid performance issues at design time. |
| Offline | Use offline mode to get the data from the cache instead of the live source. |
| Other | These hidden properties are used only in specific use cases. |
| Password | The password used to authenticate the user. |
| Pool Idle Timeout | The allowed idle time for a connection before it is closed. |
| Pool Max Size | The maximum connections in the pool. |
| Pool Min Size | The minimum number of connections in the pool. |
| Pool Wait Time | The max seconds to wait for an available connection. |
| Proxy Auth Scheme | The authentication type to use to authenticate to the ProxyServer proxy. |
| Proxy Auto Detect | This indicates whether to use the system proxy settings or not. This takes precedence over other proxy settings, so you'll need to set ProxyAutoDetect to FALSE in order use custom proxy settings. |
| Proxy Exceptions | A semicolon separated list of destination hostnames or IPs that are exempt from connecting through the ProxyServer . |
| Proxy Password | A password to be used to authenticate to the ProxyServer proxy. |
| Proxy Port | The TCP port the ProxyServer proxy is running on. |
| Proxy Server | The hostname or IP address of a proxy to route HTTP traffic through. |
| Proxy SSL Type | The SSL type to use when connecting to the ProxyServer proxy. |
| Proxy User | A user name to be used to authenticate to the ProxyServer proxy. |
| Pseudo Columns | This property indicates whether or not to include pseudo columns as columns to the table. |
| RTK | The runtime key used for licensing. |
| SSL Server Cert | The certificate to be accepted from the server when connecting using TLS/SSL. |
| Support Enhanced SQL | This property enhances SQL functionality beyond what can be supported through the API directly, by enabling in-memory client-side processing. |
| Tables | This property restricts the tables reported to a subset of the available tables. For example, Tables=TableA,TableB,TableC. |
| Timeout | The value in seconds until the timeout error is thrown, canceling the operation. |
| URL | The URL of the Dynamics GP server. |
| Use Connection Pooling | This property enables connection pooling. |
| User | The Dynamics GP user account used to authenticate. |
| Verbosity | The verbosity level that determines the amount of detail included in the log file. |
| Views | Restricts the views reported to a subset of the available tables. For example, Views=ViewA,ViewB,ViewC. |
| Parameter | Description |
| Url | |
| Company ID |
